Description
The premium flooded SMF Battery range from ACDelco features the latest Lead Calcium alloy and Full Frame grid technology which improves electrical flow, resistance to corrosion and ensures a longer life cycle than conventional lead-acid batteries. ACDelco’s Sealed Maintenance Free (SMF) range features a variety of high-quality batteries whose construction
differs from most other conventional batteries in several strategic ways:
The premium SMF Battery range is made with either proven wrought-lead calcium alloy grids or Full Frame grids*. These designs allow for stronger resistance to corrosion and overcharging while also giving them a longer shelf life. Other conventional batteries use cast antimony grids which make the battery more susceptible to corrosion and water loss.
ACDelco SMF Batteries are built with a flatbottomed, polypropylene rib case which provides improved vibration resistance and stronger durability. They also incorporate a patented Liquid Gas Separator which prevents electrolyte losses by collecting the liquid and returning it to the reservoir. While some other batteries use removable covers, the ACDelco SMF Battery incorporates sealed covers with built-in flame arresters for better resistance to acid loss, electrolyte contamination and explosions from external sparks
Features and Benefits
- ACDelco Full Frame Technology stamped positive grids*
- Patented high-density active material on plates
- Built in ‘State of Charge’ hydrometer
- Exclusive patented liquid & gas separators to prevent fluid loss
- Flame arrestor ‘Safety System’ on vents
- Low-resistance micro-porous envelope separators
- Centre-cast on plate strap connectors

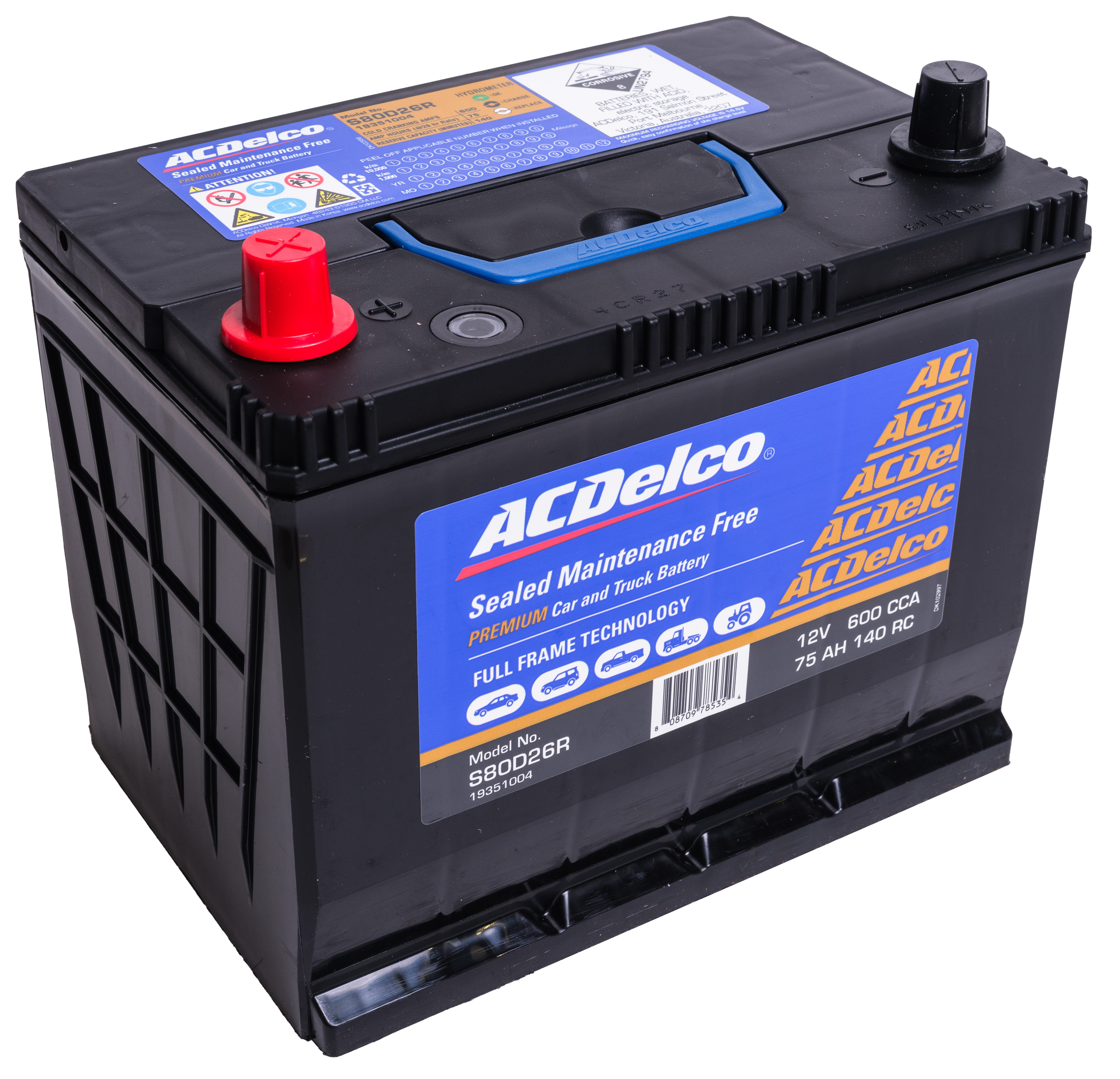

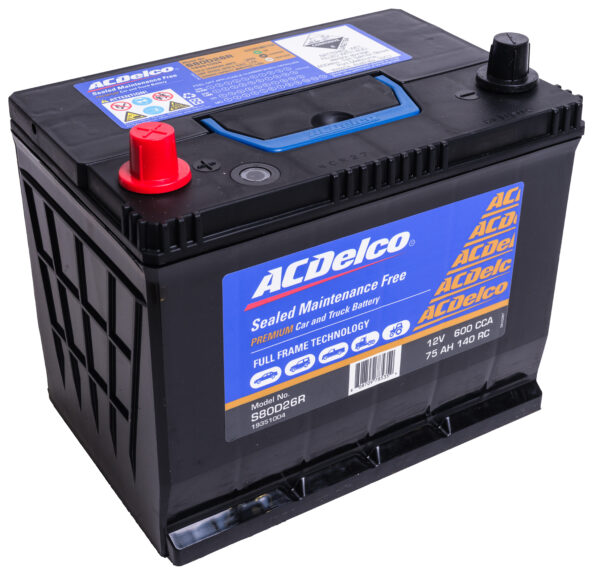

Premium Battery
| Part Number: | S80D26R |
| Ah (20hr) | 75 |
| RC (min) | 140 |
| CCA | 600 |
| Length (mm) | 260 |
| Width (mm) | 172 |
| Terminal Height (mm) | 225 |
| Cell Layout | 1 |
| Terminal Shape | STD / SAE |
| Bottom Hold Down | B1 |
